Troubleshooting Precision Systems End to End

A precision fault lives somewhere in a chain — position to correction to display to controller to implement to data — and the way to diagnose it is to isolate the stage, not guess at hardware. The reliable first moves are checking the cheap, common causes (subscription, calibration, connection) before condemning an expensive receiver or controller.

The chain, and isolating the stage

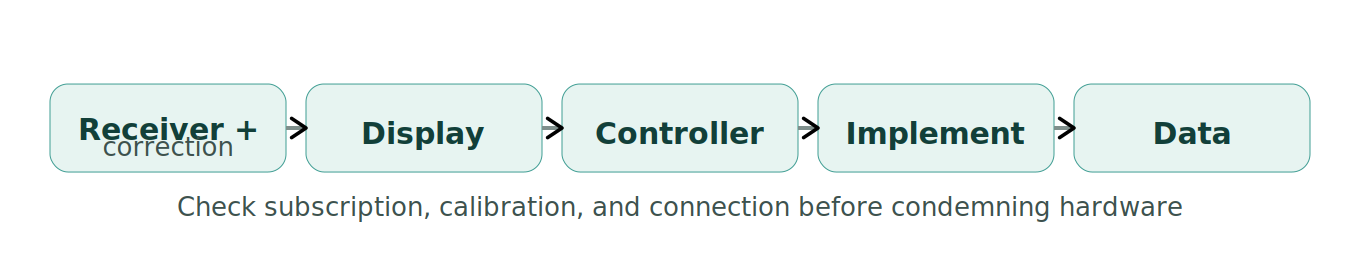

Position comes from the receiver and correction signal, runs through the display, out to the controller (guidance, section, rate), to the implement, and into the data platform. When something’s wrong — no guidance, poor accuracy, section control misbehaving, data not transferring — the discipline is to isolate which stage: is the signal good, is the calibration right, is the connection solid, is the controller or the implement at fault. Working the chain in order finds the break instead of swapping parts down the line.

Check the common causes first

Most precision complaints resolve at the cheap end. A lapsed subscription (correction or connectivity) drops accuracy or disables features — check it before the receiver. A missed or wrong calibration makes autosteer wander or section control misfire — recalibrate before replacing steering parts. A connection, ground, or antenna problem, in ag’s dirty environment, causes intermittent everything — check it before the module. These three — subscription, calibration, connection — are behind a large share of “it quit working,” and none is a failed expensive component.

Use the software, then the hardware

The diagnostic software reads the system’s codes, live data, and status across the chain, so use it to see what each stage reports before touching hardware. If signal, calibration, and connections check out, then work the hardware (receiver, controller, implement wiring) methodically like any electronic fault — confirming the failed component rather than guessing. Replace what you’ve isolated, not what you suspect.

Where it goes wrong

• Replacing a receiver or controller before checking subscription and calibration.
• Not isolating which stage of the chain is failing.
• Overlooking connections, grounds, and antennas in a dirty environment.
• Skipping the diagnostic software and parts-swapping.
